Convoluted PTFE Hose
Product Description
Originally designed for easy assembly by re-sellers looking to extend their product portfolio. Our convoluted PTFE Hose has a ‘true’ I/D and eliminates the need to de-convolute the hose when using standard hydraulic
inserts. Used in applications where constant flexing, high temperatures or chemical resistance is paramount this hose offers a cost effective solution over the full life of the hose.

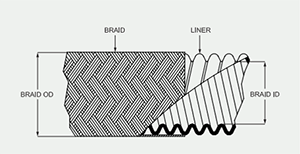

CV – Helically convoluted tube wall, non-conductive virgin
PTFE tubing, over braided with 300 series stainless steel wire.
CC – Helically convoluted tube wall, conductive lined,
virgin PTFE tubing, over braided with 300 series stainless steel wire.
Properties
- Application
- Used globally in low to medium pressure premium applications that
require more flexibility or tighter bend radius whilst still requiring the high
temperature and impeccable chemical resistance of the standard PTFE hose
- Design
- Helically convoluted PTFE tube with high tensile SS 304 braid
- Inner Layer
- Helically convoluted PTFE tube
- Outer Layer
- High tensile 304 maypole wound Stainless Steel braid
- Temperature Min
- -60°C
- Temperature Max
- +260°C
- Material
- PTFE according to “ISO12086, Part1. PTFE-E.P.D.M 1.61.C.E.4_12”
CV – Helically convoluted tube wall, virgin PTFE tubing, over braided with 300 series stainless steel wire.
CC – Helically convoluted tube wall, conductive lined, virgin PTFE tubing, over braided with 300 series stainless steel wire.
| Virgin Part Number | Conductive Part Number | Hose Size | Inside Diameter | Outside Diameter | Operating Pressure PSI | Burst Pressure PSI | Bend Radius (Inches) |
|---|---|---|---|---|---|---|---|
| CV-04 | CC-04 | 1/4 | 0.25 | 0.484 | 2,500 | 7,500 | 0.7 |
| CV-06 | CC-06 | 3/8 | 0.375 | 0.600 | 2,000 | 6,000 | 0.8 |
| CV-08 | CC-08 | 1/2 | 0.500 | 0.740 | 1,500 | 4,500 | 1 |
| CV-10 | CC-10 | 5/8 | 0.625 | 0.870 | 1,200 | 3,600 | 2 |
| CV-12 | CC-12 | 3/4 | 0.750 | 0.970 | 1,000 | 3,000 | 2.5 |
| CV-16 | CC-16 | 1 | 1 | 1.29 | 670 | 2,000 | 3.5 |
| CV-20 | CC-20 | 1-1/4 | 1.25 | 1.603 | 500 | 1,500 | 5 |
| CV-24 | CC-24 | 1-1/2 | 1.5 | 1.90 | 440 | 1,300 | 6 |
| CV-32 | CC-32 | 2 | 2 | 2.421 | 335 | 1,000 | 7.5 |
Convoluted PTFE Hose Fittings
Fittings for convoluted hoses are available in a wide variety of configurations and material options. The positive lock design is uniquely engineered to accommodate both swaging and crimping with no duplication of inventory. The collar-to-insert lock insures a leak-proof seal on the hose. Male pipe fittings and female swivel inserts are available in carbon steel and type 316 stainless steel. Collars are either carbon steel or 304 stainless steel. When only wetted surfaces require corrosion resistance, carbon steel collars may be specified with stainless steel inserts.
316 Stainless and Carbon – 2 Piece Male NPT
| 316 Stainless Part Number | Carbon Part Number | Hose Size | Thread |
|---|---|---|---|
| CM08S | CM08C | -08 | 1/2″-14 |
| CM12S | CM12C | -12 | 3/4″-14 |
| CM16S | CM16C | -16 | 1″-11 1/2 |
| CM20S | CM20C | -20 | 1-1/4″-11 1/2 |
| CM24S | CM24C | -24 | 1-1/2″-11 1/2 |
| CM32S | CM32C | -32 | 2″-11 1/2 |
Stainless and Carbon – 4 Piece FJIC
| 316 Stainless Part Number | Carbon Part Number | Hose Size | Thread |
|---|---|---|---|
| CJ08S | CJ08C | -08 | 3/4″-16 |
| CJ12S | CJ12C | -12 | 1 1/16″-12 |
| CJ16S | CJ16C | -16 | 1 5/16″-12 |
| CJ20S | CJ20C | -20 | 1 5/8″-12 |
| CJ24S | CJ24C | -24 | 1 7/8″-12 |
| CJ32S | CJ32C | -32 | 2 1/2″-12 |
Medium Pressure Tape Wrap Convoluted Hose
Product Description

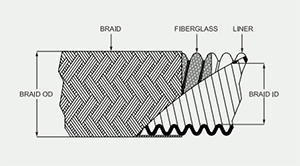

Helically convoluted strip wound PTFE and fiberglass tape combine to give extreme flexibility, corrosion resistance, long term durability and chemical inertness, this hose can be used in many diverse applications, from thermal
cycling to injection molding. The addition of Antistatic PTFE inner layer allows any static build up from electrically resistive fluids to dissipate to the end fittings
CTV – Non-conductive, PTFE lined, fiberglass reinforced inner core, over braided with 300 series stainless steel wire.
CTC – Conductive (carbon impregnated), PTFE lined, fiberglass reinforced inner core, over braided with 300 series stainless steel wire.
Properties
- Application
- Used globally in applications that require a tighter bend radius whilst still requiring the unparalleled qualities of a PTFE hose. Not suitable for steam -cold water cycling applications.
- Design
- Convoluted tape wrapped antistatic PTFE tube with high tensile SS 304 braid
- Inner Layer
- Helically convoluted antistatic PTFE tube with glass fiber outer layer
- Outer Layer
- High tensile 304 maypole wound Stainless Steel braid
- Temperature Min
- -54°C
- Temperature Max
- +204°C
- Material
- PTFE according to “ISO12086, Part1. PTFE-E.P.D.M 1.61.C.E.4_12”
CTV – Non-conductive, PTFE lined, fiberglass reinforced inner core, over braided with 300 series stainless steel wire.
CTC – Conductive (carbon impregnated), PTFE lined, fiberglass reinforced inner core, over braided with 300 series stainless steel wire.
| Virgin Part Number | Conductive Part Number | Inside Diameter | Outside Diameter | Operating Pressure PSI | Burst Pressure PSI | Bend Radius (Inches) | Weight LBS/FT |
|---|---|---|---|---|---|---|---|
| CTV-08 | CTC-08 | 0.50 | 0.76 | 1,250 | 5,000 | 1.5 | 0.20 |
| CTV-12 | CTC-12 | 0.75 | 1.07 | 1,100 | 4,400 | 2.5 | 0.33 |
| CTV-16 | CTC-16 | 1 | 1.34 | 1,000 | 4,000 | 3 | 0.43 |
| CTV-20 | CTC-20 | 1.25 | 1.57 | 1,000 | 4,000 | 3.5 | 0.53 |
| CTV-24 | CTC-24 | 1.50 | 1.81 | 750 | 3,000 | 4.5 | 0.65 |
| CTV-32 | CTC-32 | 2 | 2.32 | 500 | 2,000 | 5.25 | 0.73 |
Tape Wrap Convoluted Hose Fittings
Fittings for convoluted hoses are available in a wide variety of configurations and material options. The positive lock design is uniquely engineered to accommodate both swaging and crimping with no duplication of inventory. The collar-to-insert lock insures a leak-proof seal on the hose. Male pipe fittings and female swivel inserts are available in carbon steel and type 316 stainless steel. Collars are either carbon steel or 304 stainless steel. When only wetted surfaces require corrosion resistance, carbon steel collars may be specified with stainless steel inserts.
316 Stainless and Carbon – 2 Piece Male NPT
| 316 Stainless Part Number | Carbon Part Number | Hose Size | Thread |
|---|---|---|---|
| CTM08S | CTM08C | -08 | 1/2″-14 |
| CTM12S | CTM12C | -12 | 3/4″-14 |
| CTM16S | CTM16C | -16 | 1″-11 1/2 |
| CTM20S | CTM20C | -20 | 1-1/4″-11 1/2 |
| CTM24S | CTM24C | -24 | 1-1/2″-11 1/2 |
| CTM32S | CTM32C | -32 | 2″-11 1/2 |
Stainless and Carbon – 4 Piece FJIC
| 316 Stainless Part Number | Carbon Part Number | Hose Size | Thread |
|---|---|---|---|
| CTJ08S | CTJ08C | -08 | 3/4″-16 |
| CTJ12S | CTJ12C | -12 | 1 1/16″-12 |
| CTJ16S | CTJ16C | -16 | 1 5/16″-12 |
| CTJ20S | CTJ20C | -20 | 1 5/8″-12 |
| CTJ24S | CTJ24C | -24 | 1 7/8″-12 |
| CTJ32S | CTJ32C | -32 | 2 1/2″-12 |
Additional fittings are available upon request. Please contact us for more information.
