Heavy Duty High Pressure Hose
Product Description
The heavy weight high pressure hose, ideal for impulse and cycling applications, with a smoothbore conductive liner and multiple spiral braids—this hose passes where most hoses fail.
The HDP hose has a post sintered antistatic PTFE liner for gas applications.
Properties
- Application
- High shock/vibration applications, ideal for pressure impulses and cycling such as reaction injection moulding.
- Design

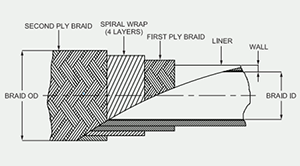

- High pressure antistatic smoothbore PTFE tube with bunch braided high tensile 304 stainless steel
- Inner Layer
- Medium wall antistatic smoothbore PTFE tube
- Outer Layer
- High tensile 304 maypole wound Stainless
- Temperature Min
- -60°C
- Temperature Max
- +260°C
- Material
- PTFE according to “ISO12086, Part1. PTFE-E.P.D.M 1.61.C.E.4_12”
NOTE: HDP has a post sintered PTFE liner for gas applications. Please contact our sales team for more information on these products.
HD – Heavy duty high pressure, PTFE lined, antistatic smoothbore conductive, reinforced with high tensile 304 stainless steel braids.
HDP – Heavy duty high pressure, post sintered PTFE lined, antistatic smoothbore conductive, reinforced with high tensile 304 stainless steel braids.
| Part Number | Description | Tube Wall Thickness Nominal | Braid OD Nominal | Tolerance +/- | Braid ID Nominal | Tolerance +/- | Maximum Working Pressure | Minimum Burst Pressure | Minimum Bend Radius | |
|---|---|---|---|---|---|---|---|---|---|---|
| Non-post Sintered | Post Sintered | (in) | (in) | (in) | (in) | (in) | (psi) | (psi) | (psi) | |
| HD-04 | HDP-04 | 1/4″ | 0.041 | 0.485 | 0.01 | 0.23 | 0.005 | 6,000 | 24,000 | 76 |
| HD-06 | HDP-06 | 3/8″ | 0.041 | 0.594 | 0.012 | 0.303 | 0.008 | 6,000 | 24,000 | 127 |
| HD-08 | HDP-08 | 1/2″ | 0.051 | 0.733 | 0.013 | 0.4 | 0.01 | 6,000 | 24,000 | 146 |
| HD-10 | HDP-10 | 5/8″ | 0.051 | 0.91 | 0.02 | 0.53 | 0.01 | 4,000 | 12,000 | 159 |
| HD-12 | HDP-12 | 3/4″ | 0.051 | 1.055 | 0.02 | 0.655 | 0.01 | 4,000 | 12,000 | 197 |
| HD-16 | HDP-16 | 1″ | 0.051 | 1.325 | 0.025 | 0.888 | 0.018 | 4,000 | 12,000 | 245 |
High Pressure and Heavy Duty High Pressure Hose Fitting are shown on page 10.
High Pressure Hose Fittings
Heavy Duty High Pressure Hose Fittings
High Pressure Hose Fittings

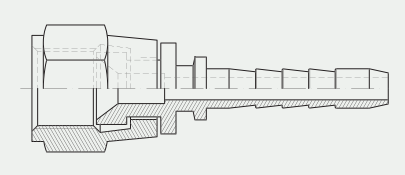

HP/HPP Crimp Style fittings are uniquely designed for optimum performance. A positive, metal-to-metal lock insures the integrity of the attachment throughout the pressure range to beyond minimum specified burst. The fitting material is 300 series stainless steel and the inside diameters are minimum diameters after crimping
| Part Number | Hose Size | Thread |
|---|---|---|
| HPJ04S | -04 | 7/16-20 |
| HPJ06S | -06 | 9/16-18 |
| HPJ08S | -08 | 3/4-16 |
| HPJ10S | -10 | 7/8-14 |
| HPJ12S | -12 | 1-1/16-12 |
| HPJ16S | -16 | 1-5/16-12 |
| HPJ20S | -20 | 1-5/8-12 |
| HPJ24S | -24 | 1-7/8-12 |
Heavy Duty High Pressure Hose Fittings
Permanently attached fittings for this hose are designed to be swaged. HD/HDP hose fittings also utilize the unique metal-to-metal lock for complete fitting integrity and performance. The material for these fittings is 300 series stainless steel. The inside diameters shown are minimum dimensions obtained after swaging or crimping.
| Part Number | Hose Size | Thread |
|---|---|---|
| HDJ04S | -04 | 7/16-20 |
| HDJ06S | -06 | 9/16-18 |
| HDJ08S | -08 | 3/4-16 |
| HDJ10S | -10 | 7/8-14 |
| HDJ12S | -12 | 1-1/16-12 |
| HDJ16S | -16 | 1-5/16-12 |
